Add-On
Whole-Home Pre-Sediment Filter
First line of defense for your plumbing.

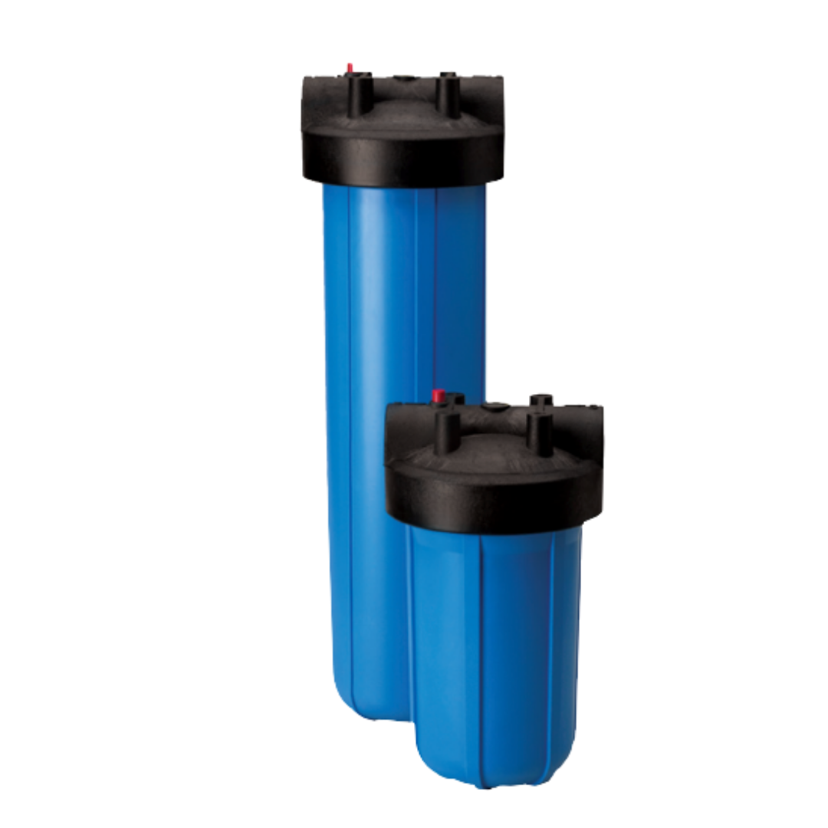

A 5-micron pre-filter in a 4" x 20" Big Blue housing. Captures dirt, sand, rust, and particulate matter before they reach your main system or plumbing.
Overview
A sediment pre-filter installs ahead of your main system and captures the particulate matter that municipal water and private wells both carry — sand, silt, rust flakes from aging pipes, and construction debris after main line work.
This matters for more than water clarity. Sediment that reaches softening resin or an RO membrane fouls it, shortening the working life of media that would otherwise last years. On well water in particular, sediment pre-filtration is not optional — it is the stage that makes everything downstream viable.
The Big Blue housing uses a replaceable cartridge that takes a few minutes to swap, and a pressure-relief button on the cap makes servicing straightforward.
Best for
Homes on well water, older neighborhoods with aging distribution mains, and anyone wanting to extend the life of downstream filtration media.
What's included
- 4" x 20" Big Blue housing with mounting bracket
- 5-micron sediment cartridge
- Pressure relief valve
- Connection fittings and installation
Features
What the Pre-Sediment Filter does
5-micron filtration captures sediment, sand, and rust
4" x 20" Big Blue housing
Protects downstream equipment and extends media life
Compatible with city and well water
Specifications
Technical details
| Specification | Detail |
|---|---|
| Micron Rating | 5 micron |
| Housing | 4" x 20" Big Blue |
| Compatibility | City water and well water |
| Cartridge Type | Replaceable spun or pleated sediment cartridge |
Installation
- Installs ahead of the whole-home system on the main line
- Requires clearance below the housing to drop the cartridge out during service
- Usually installed at the same time as a whole-home system
Ongoing care
Sediment cartridge
Typically every 6–12 months, sooner on well water
Warranty
Coverage details
| Component | Coverage |
|---|---|
| Housing & Components | 1 Year |
